HGMX
ALL CAST STEEL ROTARY GEAR PUMP

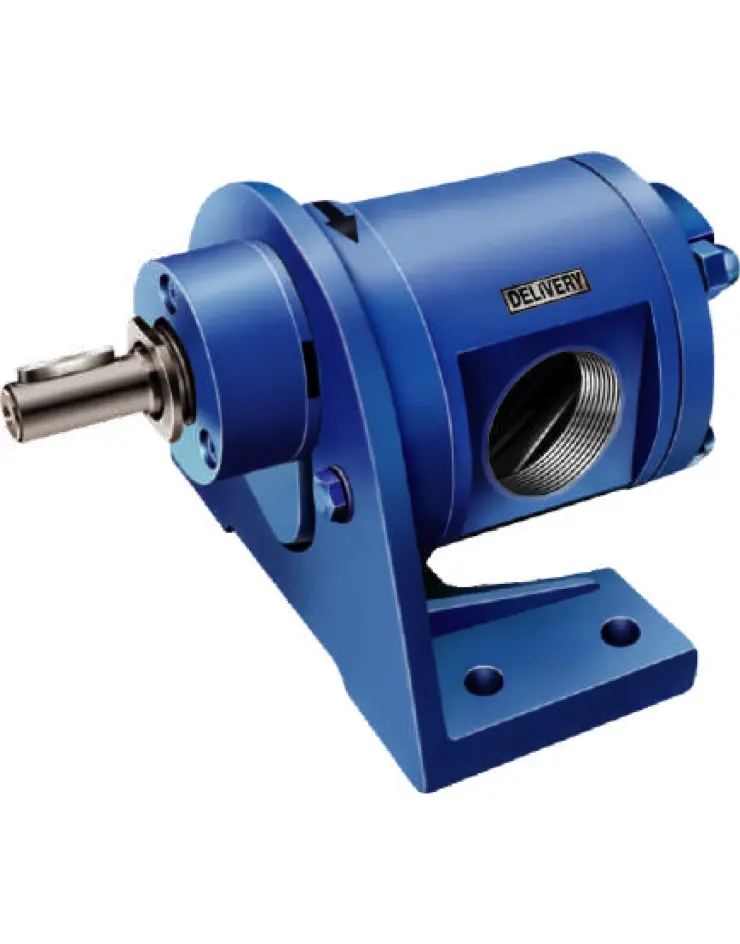

HGMX (ALL CAST STEEL ROTARY GEAR PUMP)
ROTODEL gear pump type "HGMX" is all cast steel self priming bi-directional positive displacement rotary gear pump, fitted with
sintered bronze bush bearings. Three piece design makes the pump easy cleanable, easy maintainable simply by removing four
bolts on back cover. Mechanical seal is optional for Teflon gland packing. The mounting bracket converts the pump to foot mounting
& facilitates to align the pump with electric motor of appropriate rating on base plate at the same height.
SPECIFICATIONS
| Sizes | From 1/8" to 2 1/2" NPT |
|---|---|
| Capacity | From 5 LPM to 350 LPM |
| Pressure | Upto 11 kg/cm² (157 PSI) |
| Viscosity | Upto 100000 CST |
| Temperature | Upto 250 °C |
| Mounting | Flange & Foot* |
| Direction of Rotation | Bi-Directional |
| Materials |
+ Casing : CS + Gears : EN 8 / EN 8D + Shaft : EN 9 / EN 8D + Bushing : Sintered Bronze |
| Sealing |
+ Oil Seal + Mechanical Seal + Gland Ring |
APPLICATIONS
| Filling System | Filter Systems | Metal Forming Machines |
| Paint Industry | Transmission Building | Waste Oil Disposal |
| Waste Oil Treatment | Transfer Systems | Lubricant Manufacturers |
| Lubricating Oil Systems | Machine Building Industry | Machine Tools |
| Manufacturer of Apparatus | Tank Plant Construction | Waste Oil Transport |
SUITABLE FLUIDS
| Clean Lube Oil | Vegetable Oil | Fish Oil |
| Animal Oil | Gear Oil | Hydraulic Oil |
| ASTM & SAE Lube Oil | Molasses | Crude Oil |
| Dirty Lube Oil | HSD | Kerosene |
| LDO | Paint | Wood Pulp |
| RFO | Silicate | Wax |
| HPS | Furnace Oil |
Our Pump Models
| Pump Model | Port Size # (NPT) | Capacity | Speed** (RPM) | ||
|---|---|---|---|---|---|
| LPM | US GPM | M³/Hr | |||
| HGMX 015 | 1/8" | 5.00 | 1.30 | 0.30 | 1440 |
| HGMX 025 | 1/4" | 8.30 | 2.20 | 0.50 | |
| HGMX 040 | 3/8" | 16.60 | 4.40 | 1.00 | |
| HGMX 050 | 1/2" | 25.00 | 6.60 | 1.50 | |
| HGMX 075 | 3/4 " | 33.30 | 8.80 | 2.00 | |
| HGMX 100 | 1" | 50.00 | 13.00 | 3.00 | |
| HGMX 125 | 1 1/4" | 100.00 | 26.40 | 6.00 | |
| HGMX 150 | 1 1/2" | 125.00 | 33.00 | 7.50 | |
| HGMX 200 | 2" | 150.00 | 39.50 | 9.00 | |
| HGMX 200 | 2" | 200.00 | 53.00 | 12.00 | |
| HGMX 250 | 2 1/2" | 300.00 | 65.00 | 18.00 | |
| HGMX 250 | 2 1/2" | 350.00 | 80.00 | 21.00 | |
