HGBX
ROTARY GEAR SMALL OEMS PUMP
HGBX (ROTARY GEAR SMALL OEMS PUMP)

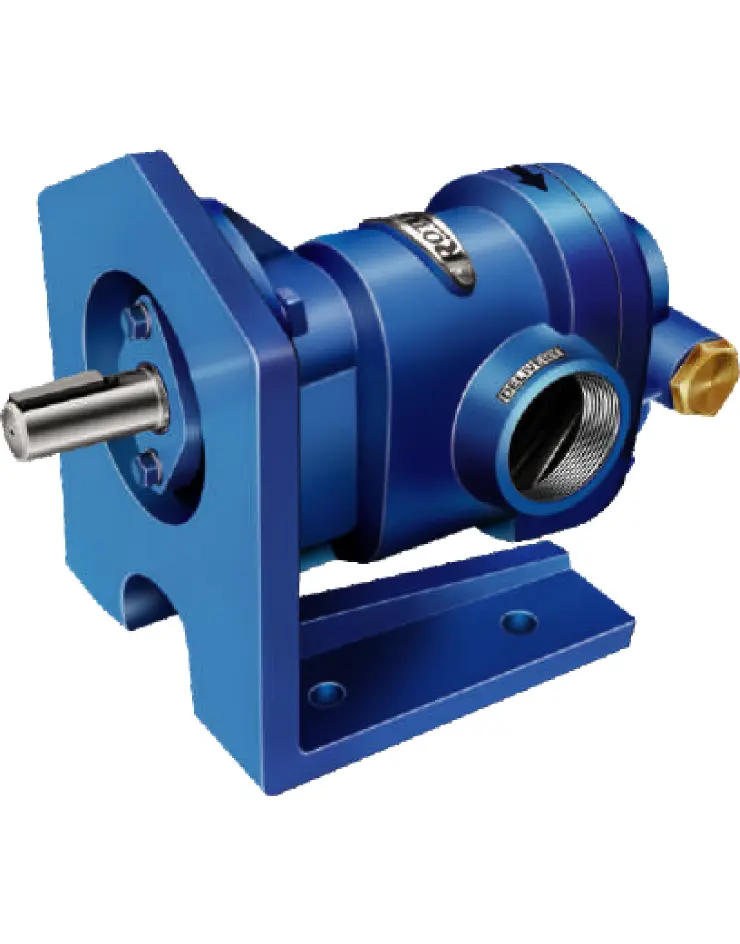

ROTODEL rotary gear pump type "HGBX" is a self priming bi-directional positive displacement gear pump in simple two piece cast
iron construction with single helical modified profile carbon steel gears shrunk fitted on alloy steel hardened & grounded shaft as
impeller firmly supported on self lubricated Sintered bronze bush bearing. The pump can be run in either direction with change in
inlet - outlet port position. The relief valve operations can be reversed by simply changing R.V parts on opposite side. The motorized
pump set in mono block design ensures the perfect alignment, saves space & reduces down time.
SPECIFICATIONS
| sizes | From 1/4" to 2 1/2" |
|---|---|
| Capacity | From 2.5 LPM to 400 LPM |
| Pressure | Upto 11 kg/cm² (157 PSI) |
| Viscosity | Upto 10000 CST | Temperature | Upto 250 °C |
| Mounting | Flange & Foot |
| Direction of Rotation | Bi-Directional |
| Sealing |
+ Oil Seal + Mechanical Seal + Gland Packing |
MATERIAL OF CONSTRUCTION
| Part Name | Material | Part Name | Material | Part Name | Material |
|---|---|---|---|---|---|
| 1. Casing & covers | CI Gr 20, IS-210 | 4. Bush - Bearing | sintered bronze | 7. R.V. Ball valve | EN-31 hardened & ground |
| 2. Drive shafts | EN-9 hardened & ground | 5. Seals - oilseals | nitrile rubber | 8. R.V. Screw & plug | Brass |
| 3. Impeller gears | EN-8 toughened | 6. R.V. Spring | AISI S.S. 302 | 9. Key for coupling | Mild steel |
APPLICATIONS
| Filling Systems | Filter Systems | Metal Forming Machines |
| Paint Industry | Waste Oil Disposal | Waste Oil Treatment |
| Transfer Systems | Lubricant Manufacturers | Lubricating Oil Systems |
| Machine Building Industry | Waste Oil Transport |
SUITABLE FLUIDS
| Clean Lube Oil | Vegetable Oil | Fish Oil |
| Gear Oil | Hydraulic Oil | Dirty Lube Oil |
| HSD | Kerosene | LDO |
| Paint | Turpentine | RFO |
| Furnace Oil |
Our Pump Models
| Pump Model | Port Size # (BSP) | Capacity | Speed** (RPM) | ||
|---|---|---|---|---|---|
| LPM | US GPM | M³/Hr | |||
| HGBX 025 | 1/4" | 2.5 | 0.65 | 0.15 | 1440 |
| 5.0 | 1.30 | 0.30 | |||
| HGBX 050 | 1/2" | 10.0 | 2.00 | 0.60 | |
| 15.0 | 4.00 | 0.90 | |||
| HGBX 075 | 3/4" | 20.0 | 5.30 | 1.20 | |
| 30.0 | 6.70 | 1.50 | |||
| HGBX 100 | 1" | 35.0 | 9.30 | 2.10 | |
| 50.0 | 13.30 | 3.00 | |||
| HGBX 125 | 1 1/4" | 60.0 | 16.00 | 3.60 | |
| 75.0 | 20.00 | 4.50 | |||
| HGBX 150 | 1 1/2" | 100.0 | 26.50 | 6.00 | |
| 125.0 | 33.30 | 7.50 | |||
| HGBX 200 | 2" | 150.0 | 40.00 | 9.00 | |
| 200.0 | 53.30 | 12.00 | |||
| 250.0 | 66.00 | 15.00 | |||
| HGBX 250 | 2 1/2" | 300.0 | 80.00 | 18.00 | |
| 350.0 | 93.30 | 21.00 | |||
| 400.0 | 105.20 | 24.00 | |||
